LSR660-685CP 15W

 Model No.

LSR660CP /LSR685CP

Wavelength

660/685+/-5 nm

Spatial Mode

Multi mode

Operation Mode

CW or Modulation

Beam Height

34mm

Output Power

8W

Beam Size

8x6mm

Beam Divergence(full angle)

1.5x4mrad

Power Stability

<3% per 4 hrs

Warm Up Time

<1 minute

MTTF

10,000 hrs

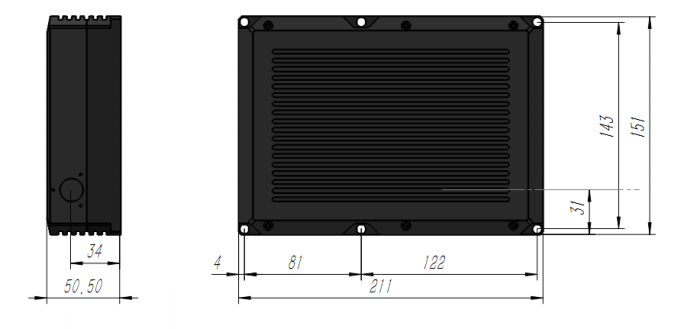

Laser head dimensions

211(L)x151(W)x50.5(H)mm3

Power Supply

A. OEM type

LSR-PS-I3: 143(L)x40(W)x68(H)mm3

AC/DC PSU: 85~265V 50/60Hz input

Modulation

0~30khz Analog or TTL
